默认的线程在Qt中称之为窗口线程，也叫主线程，负责窗口事件处理或者窗口控件数据的更新
子线程负责后台的业务逻辑处理，子线程中不能对窗口对象做任何操作，这些事情需要交给窗口线程处理
主线程和子线程之间如果要进行数据的传递，需要使用Qt中的信号槽机制

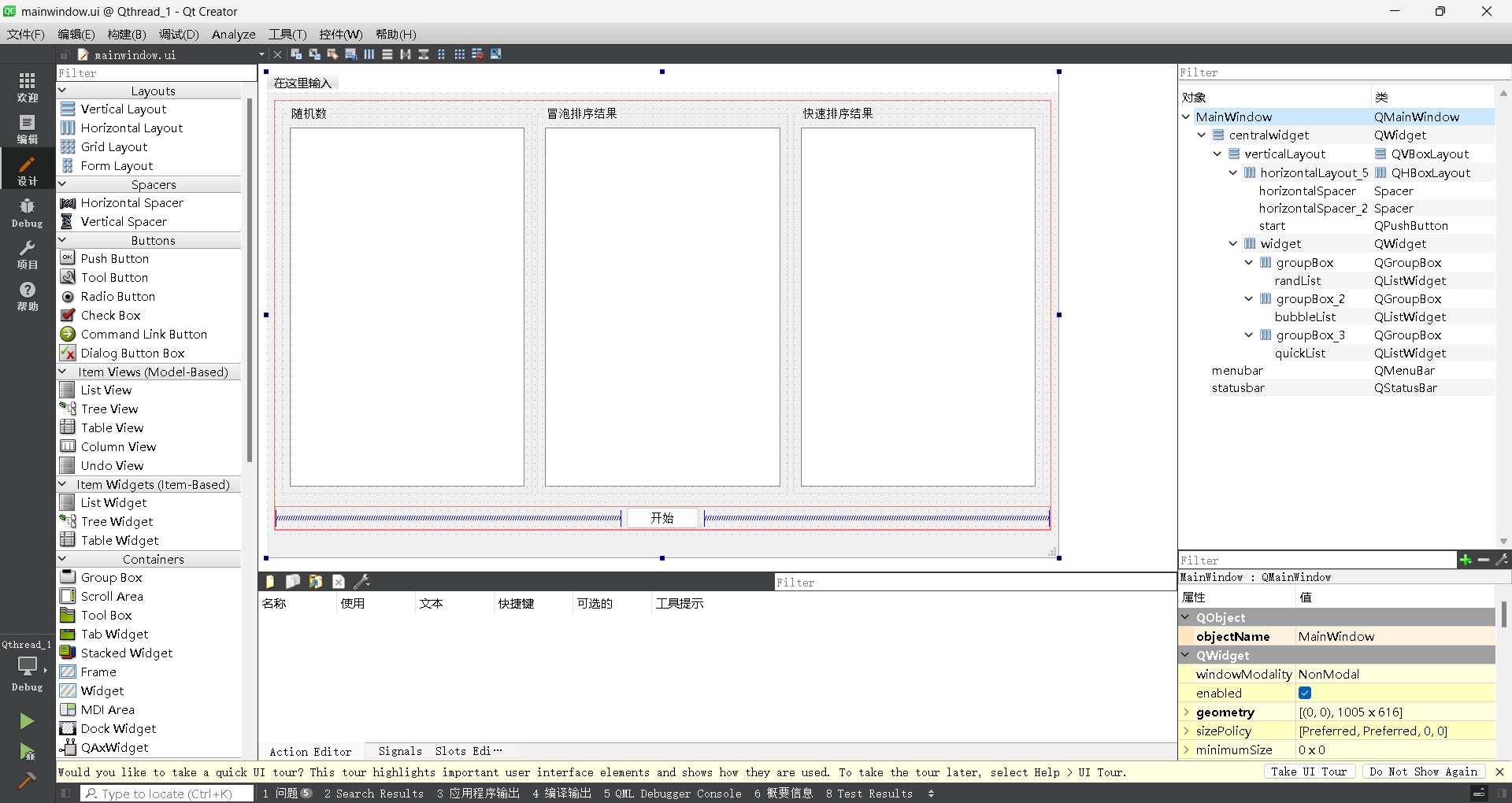

该博客涉及到三个工程，用到的是同一个ui界面，如下图
Qthread_1
mainwindow.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include "mythread.h"
QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
MainWindow(QWidget *parent = nullptr);
~MainWindow();
signals:
void starting(int num);
private:
Ui::MainWindow *ui;
};
#endif // MAINWINDOW_H
|
mainwindow.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
#include "mainwindow.h"
#include "ui_mainwindow.h"
MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
, ui(new Ui::MainWindow)
{
ui->setupUi(this);
Generate* gen = new Generate;
BubbleSort* bubble = new BubbleSort;
QuickSort* quick = new QuickSort;
connect(this, &MainWindow::starting, gen, &Generate::recvNum);
connect(ui->start, &QPushButton::clicked, this, [=]()
{
emit starting(10000);
gen->start();
});
connect(gen, &Generate::sendArray, bubble, &BubbleSort::recvArray);
connect(gen, &Generate::sendArray, quick, &QuickSort::recvArray);
connect(gen, &Generate::sendArray, this, [=](QVector<int> list)
{
bubble->start();
quick->start();
for(int i = 0; i < list.size(); i++)
{
ui->randList->addItem(QString::number(list.at(i)));
}
});
connect(bubble, &BubbleSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->bubbleList->addItem(QString::number(list.at(i)));
}
});
connect(quick, &QuickSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->quickList->addItem(QString::number(list.at(i)));
}
});
}
MainWindow::~MainWindow()
{
delete ui;
}
|
mythread.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
|
#ifndef MYTHREAD_H
#define MYTHREAD_H
#include <QThread>
#include <QVector>
#pragma execution_character_set("utf-8")
class Generate : public QThread
{
Q_OBJECT
public:
explicit Generate(QObject *parent = nullptr);
void recvNum(int num);
protected:
void run();
signals:
void sendArray(QVector<int> list);
private:
int m_num;
};
class BubbleSort : public QThread
{
Q_OBJECT
public:
explicit BubbleSort(QObject *parent = nullptr);
void recvArray(QVector<int> list);
protected:
void run();
signals:
void finish(QVector<int> num);
private:
QVector<int> m_list;
};
class QuickSort : public QThread
{
Q_OBJECT
public:
explicit QuickSort(QObject *parent = nullptr);
void recvArray(QVector<int> list);
protected:
void run();
private:
void quickSort(QVector<int> &list, int l, int r);
signals:
void finish(QVector<int> num);
private:
QVector<int> m_list;
};
#endif // MYTHREAD_H
|
mythread.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
|
#include "mythread.h"
#include <QRandomGenerator>
#include <QElapsedTimer>
#include <QDebug>
Generate::Generate(QObject *parent) : QThread(parent)
{
}
void Generate::recvNum(int num)
{
m_num = num;
}
void Generate::run()
{
qDebug() << "生成随机数的线程的线程地址: " << QThread::currentThread();
QVector<int> list;
QElapsedTimer time;
time.start();
for(int i = 0; i < m_num; i++)
{
list.push_back(qrand() % 100000);
}
int mlisec = time.elapsed();
qDebug() << "生成" << m_num << "个随机数总共用时:" << mlisec << "毫秒";
emit sendArray(list);
}
BubbleSort::BubbleSort(QObject *parent) : QThread(parent)
{
}
void BubbleSort::recvArray(QVector<int> list)
{
m_list = list;
}
void BubbleSort::run()
{
qDebug() << "冒泡排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
int temp = 0;
for(int i=0; i<m_list.size(); ++i)
{
for(int j=0; j<m_list.size()-i-1; ++j)
{
if(m_list[j] > m_list[j+1])
{
temp = m_list[j];
m_list[j] = m_list[j+1];
m_list[j+1] = temp;
}
}
}
int mlisec = time.elapsed();
qDebug() << "冒泡排序用时" << mlisec << "毫秒";
emit finish(m_list);
}
QuickSort::QuickSort(QObject *parent) : QThread(parent)
{
}
void QuickSort::recvArray(QVector<int> list)
{
m_list = list;
}
void QuickSort::run()
{
qDebug() << "快速排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
quickSort(m_list, 0, m_list.size()-1);
int mlisec = time.elapsed();
qDebug() << "快速排序用时" << mlisec << "毫秒";
emit finish(m_list);
}
void QuickSort::quickSort(QVector<int> &s, int l, int r)
{
if(l < r)
{
int i = l, j = r;
/* 拿出第一个元素，保存到x中，第一个位置成为一个坑 */
int x = s[l];
while(i < j)
{
/* 从右向左找小于x的数 */
while(i < j && s[j] >= x)
{
/* 左移，直到遇到小于等于x的数 */
j--;
}
if(i < j)
{
/* 将右侧找到的小于x的元素放入左侧坑中，右侧出现一个坑 */
/* 左侧元素索引右移 */
s[i++] = s[j];
}
/* 从左向右找大于等于x的数 */
while(i < j && s[i] < x)
{
/* 左移，直到遇到大于x的数 */
i++;
}
if(i < j)
{
/* 将左侧找到的元素放入右侧坑中，左侧出现一个坑 */
/* 右侧元素索引向前移动 */
s[j--] = s[i];
}
}
/* 此时 i=j,将保存在x中的数值填入坑中 */
s[i] = x;
quickSort(s, l, i-1); /* 递归调用 */
quickSort(s, i+1, r);
}
}
|
Qthread_2
mainwindow.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include "mythread.h"
QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
MainWindow(QWidget *parent = nullptr);
~MainWindow();
signals:
void starting(int num);
private:
Ui::MainWindow *ui;
};
#endif // MAINWINDOW_H
|
mainwindow.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QThread>
MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
, ui(new Ui::MainWindow)
{
ui->setupUi(this);
QThread* t1 = new QThread;
QThread* t2 = new QThread;
QThread* t3 = new QThread;
Generate* gen = new Generate;
BubbleSort* bubble = new BubbleSort;
QuickSort* quick = new QuickSort;
gen->moveToThread(t1);
bubble->moveToThread(t2);
quick->moveToThread(t3);
connect(this, &MainWindow::starting, gen, &Generate::working);
connect(ui->start, &QPushButton::clicked, this, [=]()
{
emit starting(10000);
t1->start();
});
connect(gen, &Generate::sendArray, bubble, &BubbleSort::working);
connect(gen, &Generate::sendArray, quick, &QuickSort::working);
connect(gen, &Generate::sendArray, this, [=](QVector<int> list)
{
t2->start();
t3->start();
for(int i = 0; i < list.size(); i++)
{
ui->randList->addItem(QString::number(list.at(i)));
}
});
connect(bubble, &BubbleSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->bubbleList->addItem(QString::number(list.at(i)));
}
});
connect(quick, &QuickSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->quickList->addItem(QString::number(list.at(i)));
}
});
}
MainWindow::~MainWindow()
{
delete ui;
}
|
mythread.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
|
#ifndef MYTHREAD_H
#define MYTHREAD_H
#include <QObject>
#include <QVector>
#pragma execution_character_set("utf-8")
class Generate : public QObject
{
Q_OBJECT
public:
explicit Generate(QObject *parent = nullptr);
void working(int num);
signals:
void sendArray(QVector<int> list);
};
class BubbleSort : public QObject
{
Q_OBJECT
public:
explicit BubbleSort(QObject *parent = nullptr);
void working(QVector<int> list);
signals:
void finish(QVector<int> num);
};
class QuickSort : public QObject
{
Q_OBJECT
public:
explicit QuickSort(QObject *parent = nullptr);
void working(QVector<int> list);
private:
void quickSort(QVector<int> &list, int l, int r);
signals:
void finish(QVector<int> num);
};
#endif // MYTHREAD_H
|
mythread.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
|
#include "mythread.h"
#include <QRandomGenerator>
#include <QElapsedTimer>
#include <QDebug>
#include <QThread>
Generate::Generate(QObject *parent) : QObject(parent)
{
}
void Generate::working(int num)
{
qDebug() << "生成随机数的线程的线程地址: " << QThread::currentThread();
QVector<int> list;
QElapsedTimer time;
time.start();
for(int i = 0; i < num; i++)
{
list.push_back(qrand() % 100000);
}
int mlisec = time.elapsed();
qDebug() << "生成" << num << "个随机数总共用时:" << mlisec << "毫秒";
emit sendArray(list);
}
BubbleSort::BubbleSort(QObject *parent) : QObject(parent)
{
}
void BubbleSort::working(QVector<int> list)
{
qDebug() << "冒泡排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
int temp = 0;
for(int i=0; i<list.size(); ++i)
{
for(int j=0; j<list.size()-i-1; ++j)
{
if(list[j] > list[j+1])
{
temp = list[j];
list[j] = list[j+1];
list[j+1] = temp;
}
}
}
int mlisec = time.elapsed();
qDebug() << "冒泡排序用时" << mlisec << "毫秒";
emit finish(list);
}
QuickSort::QuickSort(QObject *parent) : QObject(parent)
{
}
void QuickSort::working(QVector<int> list)
{
qDebug() << "快速排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
quickSort(list, 0, list.size()-1);
int mlisec = time.elapsed();
qDebug() << "快速排序用时" << mlisec << "毫秒";
emit finish(list);
}
void QuickSort::quickSort(QVector<int> &s, int l, int r)
{
if(l < r)
{
int i = l, j = r;
/* 拿出第一个元素，保存到x中，第一个位置成为一个坑 */
int x = s[l];
while(i < j)
{
/* 从右向左找小于x的数 */
while(i < j && s[j] >= x)
{
/* 左移，直到遇到小于等于x的数 */
j--;
}
if(i < j)
{
/* 将右侧找到的小于x的元素放入左侧坑中，右侧出现一个坑 */
/* 左侧元素索引右移 */
s[i++] = s[j];
}
/* 从左向右找大于等于x的数 */
while(i < j && s[i] < x)
{
/* 左移，直到遇到大于x的数 */
i++;
}
if(i < j)
{
/* 将左侧找到的元素放入右侧坑中，左侧出现一个坑 */
/* 右侧元素索引向前移动 */
s[j--] = s[i];
}
}
/* 此时 i=j,将保存在x中的数值填入坑中 */
s[i] = x;
quickSort(s, l, i-1); /* 递归调用 */
quickSort(s, i+1, r);
}
}
|
Qthreadpool
mainwindow.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include "mythread.h"
QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
MainWindow(QWidget *parent = nullptr);
~MainWindow();
signals:
void starting(int num);
private:
Ui::MainWindow *ui;
};
#endif // MAINWINDOW_H
|
mainwindow.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QThreadPool>
MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
, ui(new Ui::MainWindow)
{
ui->setupUi(this);
Generate* gen = new Generate;
BubbleSort* bubble = new BubbleSort;
QuickSort* quick = new QuickSort;
connect(this, &MainWindow::starting, gen, &Generate::recvNum);
connect(ui->start, &QPushButton::clicked, this, [=]()
{
emit starting(10000);
QThreadPool::globalInstance()->start(gen);
});
connect(gen, &Generate::sendArray, bubble, &BubbleSort::recvArray);
connect(gen, &Generate::sendArray, quick, &QuickSort::recvArray);
connect(gen, &Generate::sendArray, this, [=](QVector<int> list)
{
QThreadPool::globalInstance()->start(bubble);
QThreadPool::globalInstance()->start(quick);
for(int i = 0; i < list.size(); i++)
{
ui->randList->addItem(QString::number(list.at(i)));
}
});
connect(bubble, &BubbleSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->bubbleList->addItem(QString::number(list.at(i)));
}
});
connect(quick, &QuickSort::finish, this, [=](QVector<int> list)
{
for(int i = 0; i < list.size(); i++)
{
ui->quickList->addItem(QString::number(list.at(i)));
}
});
}
MainWindow::~MainWindow()
{
delete ui;
}
|
mythread.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
|
#ifndef MYTHREAD_H
#define MYTHREAD_H
#include <QVector>
#include <QObject>
#include <QRunnable>
#pragma execution_character_set("utf-8")
class Generate : public QObject, public QRunnable
{
Q_OBJECT
public:
explicit Generate(QObject *parent = nullptr);
void recvNum(int num);
void run();
signals:
void sendArray(QVector<int> list);
private:
int m_num;
};
class BubbleSort : public QObject, public QRunnable
{
Q_OBJECT
public:
explicit BubbleSort(QObject *parent = nullptr);
void recvArray(QVector<int> list);
void run();
signals:
void finish(QVector<int> num);
private:
QVector<int> m_list;
};
class QuickSort : public QObject, public QRunnable
{
Q_OBJECT
public:
explicit QuickSort(QObject *parent = nullptr);
void recvArray(QVector<int> list);
void run();
private:
void quickSort(QVector<int> &list, int l, int r);
signals:
void finish(QVector<int> num);
private:
QVector<int> m_list;
};
#endif // MYTHREAD_H
|
mythread.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
|
#include "mythread.h"
#include <QRandomGenerator>
#include <QElapsedTimer>
#include <QDebug>
#include <QThread>
Generate::Generate(QObject *parent) : QObject(parent), QRunnable()
{
setAutoDelete(true);
}
void Generate::recvNum(int num)
{
m_num = num;
}
void Generate::run()
{
qDebug() << "生成随机数的线程的线程地址: " << QThread::currentThread();
QVector<int> list;
QElapsedTimer time;
time.start();
for(int i = 0; i < m_num; i++)
{
list.push_back(qrand() % 100000);
}
int mlisec = time.elapsed();
qDebug() << "生成" << m_num << "个随机数总共用时:" << mlisec << "毫秒";
emit sendArray(list);
}
BubbleSort::BubbleSort(QObject *parent) : QObject(parent), QRunnable()
{
setAutoDelete(true);
}
void BubbleSort::recvArray(QVector<int> list)
{
m_list = list;
}
void BubbleSort::run()
{
qDebug() << "冒泡排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
int temp = 0;
for(int i=0; i<m_list.size(); ++i)
{
for(int j=0; j<m_list.size()-i-1; ++j)
{
if(m_list[j] > m_list[j+1])
{
temp = m_list[j];
m_list[j] = m_list[j+1];
m_list[j+1] = temp;
}
}
}
int mlisec = time.elapsed();
qDebug() << "冒泡排序用时" << mlisec << "毫秒";
emit finish(m_list);
}
QuickSort::QuickSort(QObject *parent) : QObject(parent), QRunnable()
{
setAutoDelete(true);
}
void QuickSort::recvArray(QVector<int> list)
{
m_list = list;
}
void QuickSort::run()
{
qDebug() << "快速排序的线程的线程地址: " << QThread::currentThread();
QElapsedTimer time;
time.start();
quickSort(m_list, 0, m_list.size()-1);
int mlisec = time.elapsed();
qDebug() << "快速排序用时" << mlisec << "毫秒";
emit finish(m_list);
}
void QuickSort::quickSort(QVector<int> &s, int l, int r)
{
if(l < r)
{
int i = l, j = r;
/* 拿出第一个元素，保存到x中，第一个位置成为一个坑 */
int x = s[l];
while(i < j)
{
/* 从右向左找小于x的数 */
while(i < j && s[j] >= x)
{
/* 左移，直到遇到小于等于x的数 */
j--;
}
if(i < j)
{
/* 将右侧找到的小于x的元素放入左侧坑中，右侧出现一个坑 */
/* 左侧元素索引右移 */
s[i++] = s[j];
}
/* 从左向右找大于等于x的数 */
while(i < j && s[i] < x)
{
/* 左移，直到遇到大于x的数 */
i++;
}
if(i < j)
{
/* 将左侧找到的元素放入右侧坑中，左侧出现一个坑 */
/* 右侧元素索引向前移动 */
s[j--] = s[i];
}
}
/* 此时 i=j,将保存在x中的数值填入坑中 */
s[i] = x;
quickSort(s, l, i-1); /* 递归调用 */
quickSort(s, i+1, r);
}
}
|
